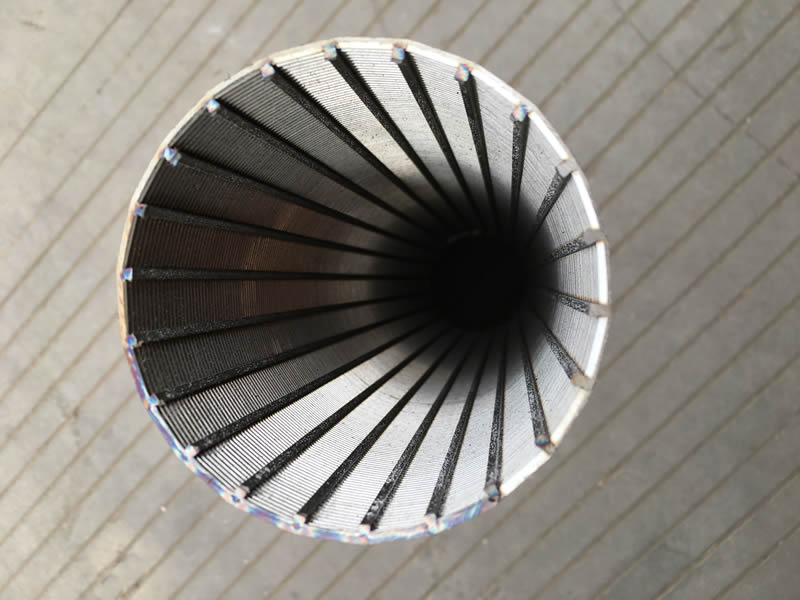

Wedge wire screen fabricated filter element/cartridge has micron filtration ratings. This rigid filter tube or literal not only offers high filtration accuracy, but also high strength and durability. The benefits are achieved by its special structure of welded slotting with wires and support rods. The filtration can be as fine as 20 microns.

Introduction of Filter Media:

Wedge wire as filter media is a welded stainless steel structure, mainly used for filtration, separation and retention. It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows. Wedgewire screen panels find popular uses in making of filter elements and cartridges for water treatment and other industries.

Application:
Stainless steel wedge wire elements are used in water treatment,oilfield,mining,foodindustry,chemicalindustry,papermakingindustry for sifting, liquid control and retaining of particles, etc.
Listed please find popular specifications of wedge wire filter elements, while we can design and manufacture with your coming sizes and drawings.

Technical specification in General:
 Materials: SS 304, 316,316L, Stainless steel and carbon steel.

Thickness:5mm

Filter Rating(Micron):20-300um

Slot size range: 0.05, 0.1, 0.25,0.50,0.75,1.00,1.50,2.00,3.00(mm)

Sizes: Type A:
Flow Direction: in to out.
Degree of Filtration
(Slot Opening): 0.8mm OR 1mm
Materials: Stainless steel 316L
Service: Industrial Water Control
Filter Dimensions: 750mm -1000 mm Diameter x 1800mm Length
Size: Diameter. 215 x 500LG.
Flow Direction: in to out
Materials: Stainless steel 304
Slot Opening: 250 Micron
Flow Direction: In to Out
Differential Pr. To: 6Kg/cm2
Withstand at 40 Deg. C

Type B:
Size: Diameter. 268 x 1000LG.
Size: Diameter. 215 x 750LG.
Common Specification :
Flow Direction: in to out
Materials: Stainless steel 304
Slot Opening: 250 Micron
Flow Direction: In to Out
Differential Pr. To: 6Kg/cm2
Withstand at 40 Deg. C
